HOME>PRODUCTS>SCISSOR LIFT>1623RD

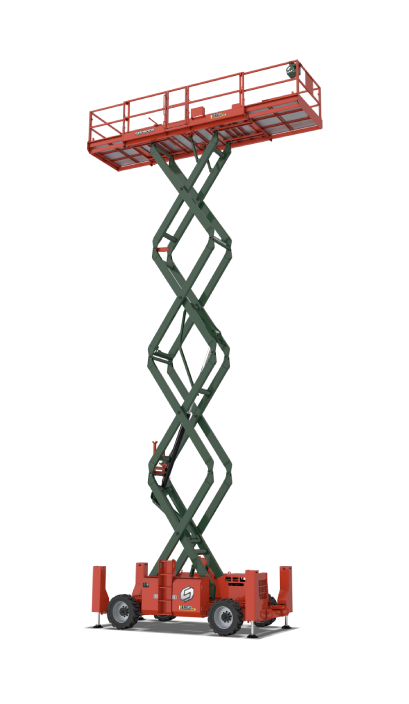

1623RD

Rough Terrain Scissor Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Product Highlights

  • Easy maintenance

    ■ Integrated pipeline assembly, convenient for troubleshooting
    ■ Double-door design for easy maintenance, spacious area for maintenance
    ■ Drawer-type engine compartment, easy maintenance

  • Strong off-road performance

    ■ Up to 40% gradeability, easily handling outdoor needs
    ■ Stable movement, copes well with potholed ground

  • Excellent performance

    ■ Powerful platform capacity for unprecedented efficiency
    ■ Two-way extendable platform, spacious working platform
    ■ Wide-angle tilt, one-click outrigger leveling
Dimensions

  • Max Working Height

    18.2m (59'8.5")

  • [A] Max Platform Height

    16.2m (53'2")

  • [B] Max Horizontal Extension

    1.5m/1.2m

  • [C] Length-Stowed
    (Outriggers/Without Outriggers)

    4.88m

  • [D] Width-Stowed

    2.28m

  • Height - stowed (Rail Folded)

    2.44m

  • [E] Height - stowed
    (Rail Unfolded)

    3.21m

  • [F] Wheelbase

    2.84m

  • Ground Clearance

    0.36m

  • Platform Dimensions(L×W×H)

    3.98m×1.83m×1.1m (13'×6'×3'7") (6.5m platform)
Performance

  • Platform Allowable Occupants
    (Indoor)

    4 Persons

  • Platform Allowable Occupants
    (Outdoor)

    4 Persons

  • Platform Capacity

    680kg

  • Drive Speed-Stowed

    6.1km/h

  • Drive Speed-Raised

    1.1km/h

  • Elevation Time
    (Unloaded)

    70s~90s

  • Descent Time
    (Unloaded)

    45s～55s

  • Gradeability

    40%

  • Turning Radius
    (Inside/Outside)

    2.2m/5.3m

  • Tilt Rating
    (Front to Back)

    3°

  • Tilt Rating
    (Side to Side, Outrigger Tele-In/Tele-Out)

    2°/0.8°

  • Max Outrigger Leveling
    (Front to Back)

    7°

  • Max Outrigger Leveling
    (Side to Side)

    12°

  • Tyres-solid

    315/55D20 (non-marking)
Power

  • Power Source

    Yanmar 4TNV88-BDFLTC 34.5kW

  • Drive Mode

    4WD×2WS

  • Fuel Tank Capacity - Diesel

    110L

  • Hydraulic System Capacity

    140L


  • Weight
    (Outriggers/Without Outriggers)

    8,780 kg

  • Standards Compliance

    AS/NZS1418
Download Brochures
Standard features
  • 4 WD × 2 WS
  • Forklift pockets and lifting points
  • Proportional control
  • Tilt protection system
  • Foldable guardrail
  • Overload sensing system
  • Oscillating axle
  • Telematics-ready connector
  • Non-marking tires
  • Pipe-rack ready
  • White noise alarm
Optional features
  • AC power to platform
  • Secondary guarding system
  • Lockable battery isolator
  • Pipe rack
