Easily passes through most standard doors
Easily passes through most standard doors, zero tail sweep and zero tailswing -
Unique disassembly system with integrated boom
■ Unique disassembly system with integrated boom -
Unique movable pothole protection system
■ Unique movable pothole protection system

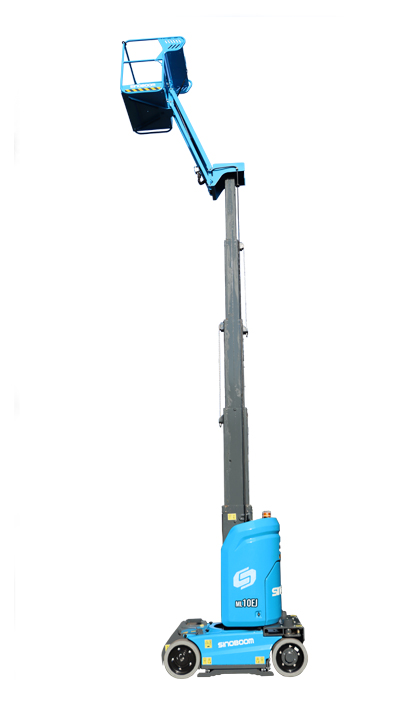

ML10EJ
VERTICAL MAST LIFTS
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS
Product Highlights

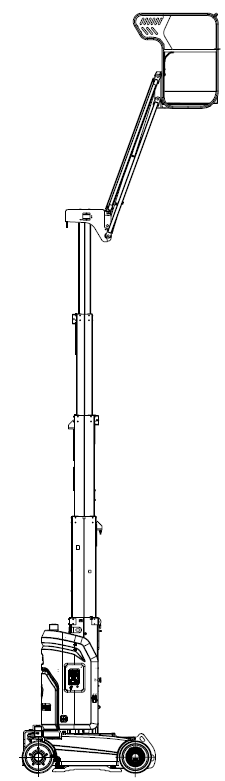

Dimensions
-
Max Platform Height
8.3m (27'3") -
Max Working Height
10.3m (33'9.5") -
Max Horizontal Reach
3.3m -
Turntable Rotation
345° -
Turntable Tailswing
-
Vertical jib rotation
+70°/-50° -

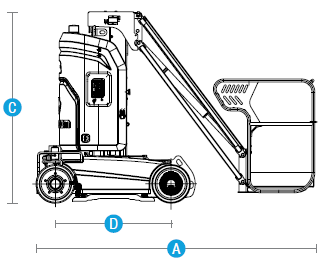

[A] Height-Stowed
1.99m -

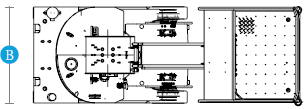

[B] Width-Stowed
0.99m -
[C] Wheelbase
1.2m -
[D] Length-Stowed
2.97m -
Ground Clearance
(Pothole Guard Stowed)0.06m -
Ground Clearance
(Pothole Guard Deployed)0.02m -
Platform Dimensions(L×W×H)
0.99×0.7×1.1m
Performance
-
Platform Allowable Occupants
(Indoor/ Outdoor)2 persons/1 person -
Platform Capacity
200kg -
Drive Speed-Stowed
4km/h -
Drive Speed-Raised
0.6km/h -
Elevation Time
32~36s (unloaded) -
Descent Time
32~37s (unloaded) -
Gradeability
25% -
Turning Radius
(Inside/Outside)0/1.55m -
Tilt Rating
(Front to Back/Side to Side)3°/3° -
Tyre Spec/Type
406×127mm
Power
-
Batteries
24 V, 240 Ah -
Power Source
24V DC / 4 kW -
Drive Mode
2 WD×2 WS -
Charger Input
100～240 V AC -
Charger Output
30A -
Brake
2 rear wheel -
Hydraulic System Capacity
13L
-
Weight
2,678kg -
Standards Compliance
AS/NZS1418
Standard features
- 2WD×2WS
- Maintenance-free battery
- Non-marking tires
- Proportional control
- Emergency stop
- Tilt protection system
- Forklift pockets and lifting points
- Overload sensing system
- Zero inside turning radius
- Automatic pothole protection
- Driveable at full height
- Bumper rails
- Auto braking system
- Secondary guarding system
- Telematics-ready connector
- White noise alarm
Optional features
- AC power to platform
- Harness tube
- Wheel nut indicator
- Fire extinguisher
- Full mine spec
