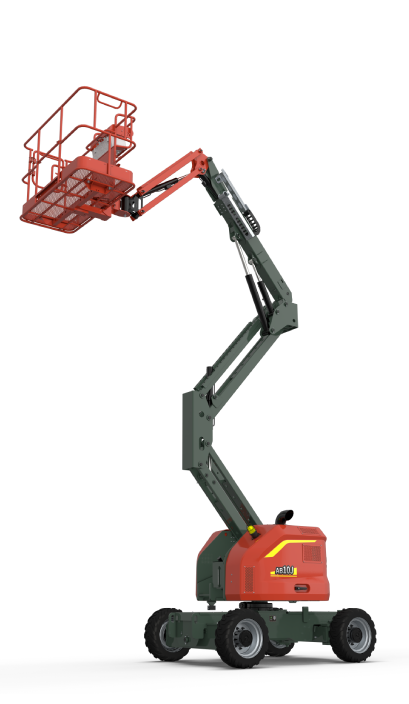

AB10J
Engine Powered Articulated Boom Lifts
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS
Dimensions
-
Max Platform Height
10.39m(34'1'') -
Max Working Height
12.39(40'8'') -
Max Horizontal Extension
5.75m -
[A] Length-Stowed
5.28m -
[B] Width-Stowed
1.85m -
[C] Height-Stowed
1.83m -
[D] Wheelbase
1.88m -
Ground Clearance
0.25m -
Platform Dimensions(L×W×H)
1.42x0.76x1.1m
Performance
-
Platform Capacity
(Unrestricted/2 Persons)250kg -
Turntable Rotation
355° -
Platform Rotation
160° -
Drive Speed-Stowed
5.5 km/h -
Drive Speed-Raised
1.1 km/h -
Gradeability
40% -
Turning Radius-Inside
1.5m -
Turning Radius-Outside
3.9m -
Turntable Tailswing
0 m -
Tilt Rating
3°/4.5° （side to side /front to back） -
Max Operating Noise Level
-
Drive×Steer
4WDx2WS -
Tyres Spec/Type
27x10.5-15 Foam-filled RT non-marking tires
Power
-
Power source(optional)
Kubota D1105 18.2kw -
Auxiliary Power Unit
12V DC -
Fuel Tank Capacity-Diesel
-
Hydraulic Tank Capacity
65L
-
Weight
4986 -
Standards Compliance
CE/ANSI/CSA/AS
Standard features
- Oscillating function
- 7-in display screen
- 4WD × 2WS
- Proportional control with 3 joysticks
- Hydraulic platform leveling
- 160° Platform rotation
- Max tilt rating to 5°
- 2.44 m(8') platform with swing gate
- Non-marking tires
- Secondary guarding system
- Half Mesh
- Telematics-ready connector
- White noise alarm
- Lockable battery isolator
Optional features
- AC power to platform
- Harness tube
- Wheel nut indicator
- Fire extinguisher
- Full mine spec
