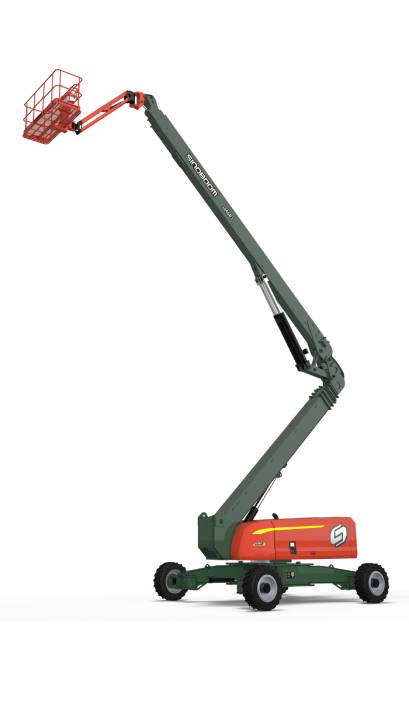

AB46RJ
Engine Powered Articulated Boom Lifts
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS
Dimensions
-
Max Platform Height
46.6m (152'11") -
Max Working Height
48.6m (159'5") -
Max Horizontal Extension
25.5m -
[A] Length-Stowed
15m -
[B] Width-Stowed
2.49m -
[C] Height-Stowed
3.2m -
[D] Wheelbase
5.2m -
Ground Clearance
0.33m -
Platform Dimensions(L×W×H)
2.44x0.91x1.1m
Performance
-
Platform Capacity
(Unrestricted/2 Persons)455kg / 275kg (Restricted / Unrestricted) -
Turntable Rotation
360° continuous -
Platform Rotation
180° -
Drive Speed-Stowed
4.5km/h -
Drive Speed-Raised
0.48km/h -
Gradeability
40% -
Turning Radius-Inside
7.1m -
Turning Radius-Outside
9.52m -
Turntable Tailswing
4.6 m -
Tilt Rating
5° -
Max Operating Noise Level
-
Drive×Steer
4WDx4WS -
Tyres Spec/Type
445/50D710 24PR (non-marking)
Power
-
Power source(optional)
Cummins QSF3.8t3TC99/ EU Stage 3A -
Auxiliary Power Unit
12 VDC -
Fuel Tank Capacity-Diesel
200L -
Hydraulic Tank Capacity
410L
-
Weight
27,300kg -
Standards Compliance
AS/NZS1418
Standard features
- 7-in display screen
- 4WD x 4WS
- Proportional control with 3 joysticks
- Hydraulic platform levelling
- Max tilt rating to 5°
- 2.44m(8') platform with swing gate
- Non-marking tires
- Secondary guarding system
- Half Mesh
- Telematics-ready connector
- White noise alarm
- Lockable battery isolator
Optional features
- AC power to platform
- Harness tube
- Wheel nut indicator
- Fire extinguisher
- Full mine spec
