Powerful Off-Road Performance
■ 40%-45% gradeability, proprietary patented technology for anti-skid
control to ensure a strong off-road capability -
Smart maintenance
■ Smart 7" screen display, fault and status information display for easy
viewing of machine status and fault diagnosis, parameters and settings -
Precision performance
■ 3 joysticks with variable proportional control, boom swing, boom
extension, turntable rotation and walking speed, smooth start and stop
motion, accuracy in reaching the operation target -
Safe and reliable
■ Secure and reliable folding arm, luffing operation with hydraulic
interlocking, and hydraulic-connection body leveling
■ Simple and reliable hydraulic platform leveling -
Operating efficiency
■ The working platform can be lifted and lowered to any position without
the need to operate the folding arm.
■ Quick platform ascent and descent

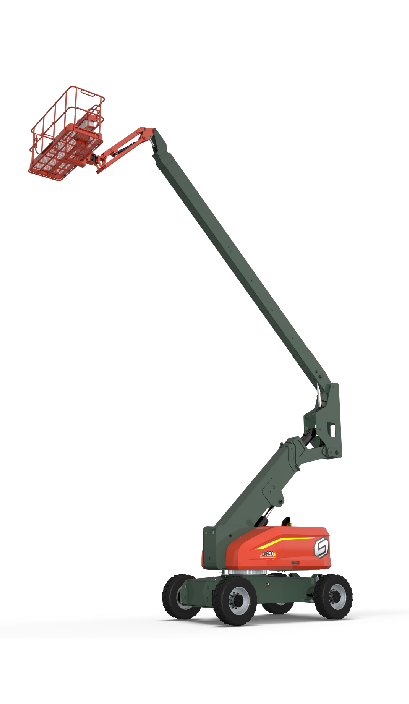

AB25J
Engine Powered Articulated Boom Lifts
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS
Product Highlights
Dimensions
-
Max Platform Height
24.6m -
Max Working Height
26.6m -
Max Horizontal Extension
16.1m -
[A] Length-Stowed
11.51m -
[B] Width-Stowed
2.49m -
[C] Height-Stowed
3.2m -
[D] Wheelbase
3.05m -
Ground Clearance
0.39m -
Platform Dimensions(L×W×H)
2.44×0.91×1.1 m
Performance
-
Platform Capacity
(Unrestricted/2 Persons)230kg -
Turntable Rotation
360° continuous -
Platform Rotation
160° -
Drive Speed-Stowed
4.4km/h -
Drive Speed-Raised
1.1km/h -
Gradeability
45％ -
Turning Radius-Inside
3.0m -
Turning Radius-Outside
6.33m -
Turntable Tailswing
1m -
Tilt Rating
5° -
Max Operating Noise Level
-
Drive×Steer
4WD × 2WS -
Tyres Spec/Type
385/65-22.5 (non-marking)
Power
-
Power source(optional)
54 kW/2400 rpm/QSF2.8t3TC72/ Cummins /China T3/EU Stage 3A -
Auxiliary Power Unit
12V DC -
Fuel Tank Capacity-Diesel
140L -
Hydraulic Tank Capacity
180L
-
Weight
17,150 kg -
Standards Compliance
AS/NZS1418
Standard features
- Oscillating function
- 7-in display screen
- 4WD × 2WS
- Proportional control with 3 joysticks
- Hydraulic platform leveling
- 160° Platform rotation
- Max tilt rating to 5°
- 2.44 m(8') platform with swing gate
- Non-marking tires
- Secondary guarding system
- Half Mesh
- Telematics-ready connector
- White noise alarm
- Lockable battery isolator
Optional features
- AC power to platform
- Harness tube
- Wheel nut indicator
- Fire extinguisher
- Full mine spec
