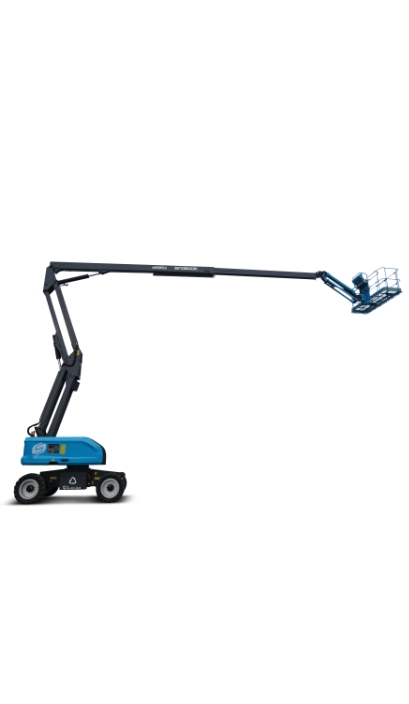

AB22EJ Plus Li
Electric Articulated Boom Lifts -Lithium
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS
Dimensions
-
Max Platform Height
21.6m (70'10") -
Max Working Height
23.6 m (77'5") -

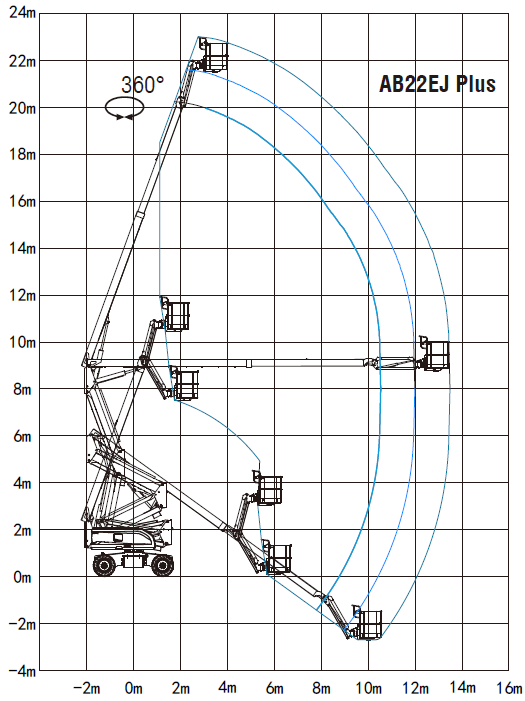

Max Horizontal Extension
13.4m / 11.9m / 10.45m -

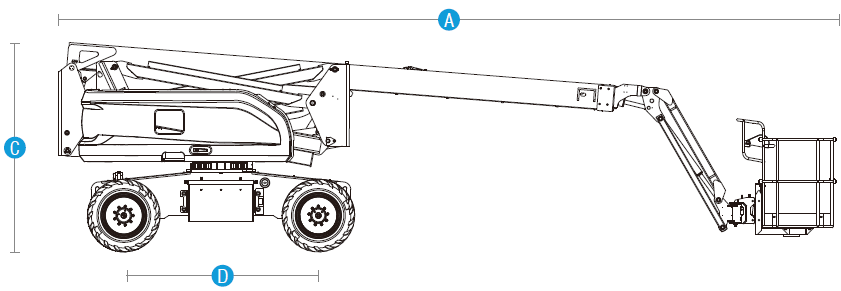

[A] Length-Stowed
9.95m -

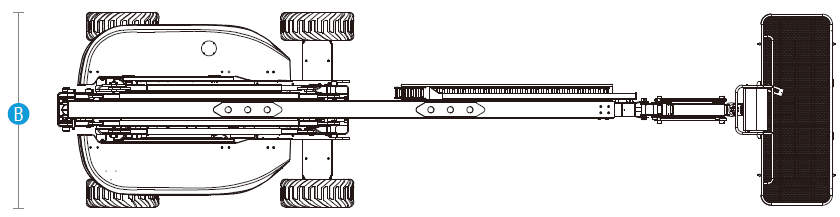

[B] Width-Stowed
2.49m -
[C] Height-Stowed
2.68m -
[D] Wheelbase
2.49m -
Ground Clearance
0.39m -
Platform Dimensions
(L×W×H)2.44x0.91x1.1m
Performance
-
Platform Capacity
(Unrestricted/2 Persons)230 kg / 340kg / 450kg (Unrestricted / Restricted / Restricted) -
Turntable Rotation
360° -
Platform Rotation
180° -
Drive Speed-Stowed
4.8 km/h -
Drive Speed-Raised
1.1 km/h (0.68mph) -
Gradeability
40％ -
Turning Radius-Inside
2.4m -
Turning Radius-Outside
5.55m -
Turntable Tailswing
0.84m -
Tilt Rating
5° -
Drive×Steer
4WDx2WS -
Tyres Spec/Type
355/55D625 (non-marking)
Power
-
Batteries
48 V 500 Ah (lithium battery)
48 V, 480 Ah (lead acid battery) -
Auxiliary Power Unit
12V DC -
Hydraulic Tank Capacity
130 L
-
Weight
10,900kg -
Standards Compliance
AS/NZS1418
Standard features
- Active oscillating function
- 5-in display screen
- 4WD × 2WS
- Proportional control with 3 joysticks
- Hydraulic platform leveling
- Max tilt rating to 5°
- 2.44 m (8') platform with swing gate
- Non-marking tires
- Secondary guarding system
- Half Mesh
- Telematics-ready connector
- White noise alarm
- Lockable battery isolator
- Lithium battery
Optional features
- AC power to platform
- Harness tube
- Wheel nut indicator
- Fire extinguisher
- Full mine spec
- AGM battery
