Industry-leading adaptability
Large tilt angle up to 5° -
Smart maintenance
Smart screen display, fault and status information display for easy
viewing of machine status and fault diagnosis, parameters and settings -
Precision performance
3 joysticks with variable proportional control, boom swing, boom extension, turntable rotation and walking speed, smooth start and stop motion, accuracy in reaching the operation target -
Suitable for narrow spaces
Narrow body of 1.9m(6'3"), 50mm(2") tail sweep is almost zero -
Green
Fully battery-powered, silent, zero emissions, long battery life,
especially suitable for indoor work

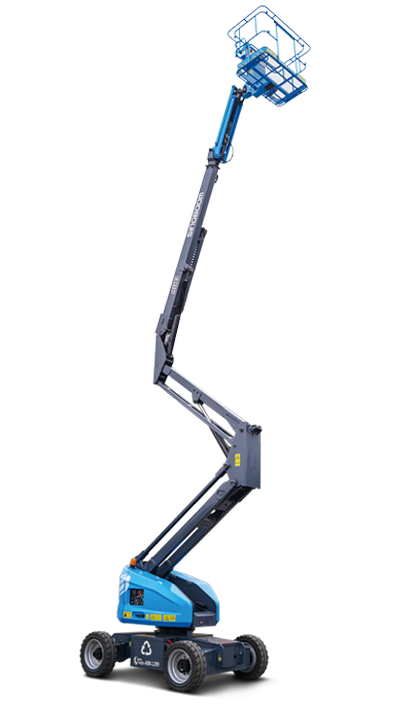

AB14EJ
Electric Articulated Boom Lifts
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS
Product Highlights
Dimensions
-

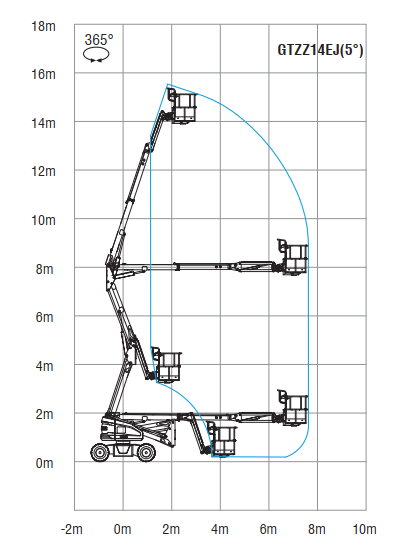

Max Platform Height
14m (45'11") -
Max Working Height
16m (52'6") -
Max Horizontal Extension
7.6m -

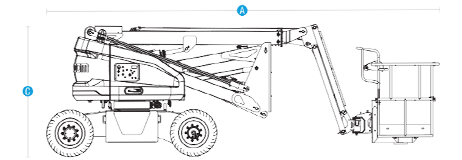

[A] Length-Stowed
6m -

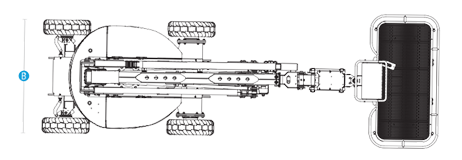

[B] Width-Stowed
1.73m -
[C] Height-Stowed
2m -
[D] Wheelbase
1.9m -
Ground Clearance
0.22m -
Platform Dimensions
(L×W×H)1.45×0.85×1.1m
Performance
-
Platform Capacity
(Unrestricted/2 Persons)230kg -
Turntable Rotation
355° non-continuous -
Platform Rotation
160° -
Drive Speed-Stowed
5.2km/h -
Drive Speed-Raised
0.8km/h -
Gradeability
30％ -
Turning Radius-Inside
1.15m -
Turning Radius-Outside
3.51m -
Turntable Tailswing
0m -
Tilt Rating
5° -
Drive×Steer
2WD×2WS -
Tyres Spec/Type
240/55D17.5 (non-marking)
Power
-
Batteries
48 V, 390 Ah (lead acid battery) -
Auxiliary Power Unit
12V DC -
Hydraulic Tank Capacity
40L
-
Weight
7,100kg -
Standards Compliance
AS/NZS1418
Standard features
- 5-in display screen
- 2WD x 2WS
- Proportional control with 2 joysticks
- Emergency lowering system
- Hydraulic platform leveling
- Max tilt rating to 5°
- Non-marking tires
- 1.45m (4'9") platform
- Secondary guarding system
- Half Mesh
- Telematics-ready connector
- White noise alarm
- Lockable battery isolator
Optional features
- AC power to platform
- Harness tube
- Wheel nut indicator
