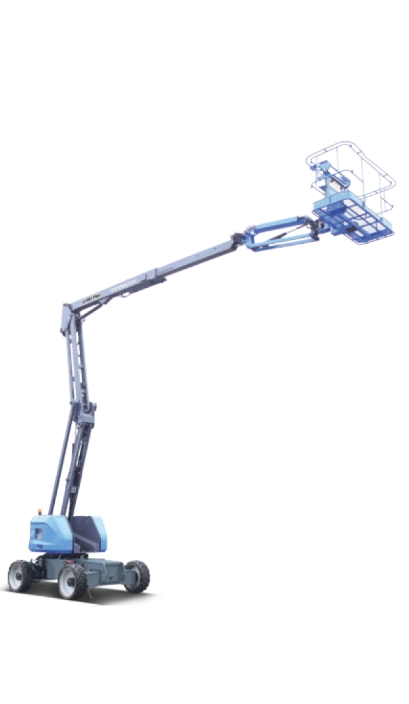

AB16EJ Plus
Electric Articulated Boom Lifts
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS
Dimensions
-

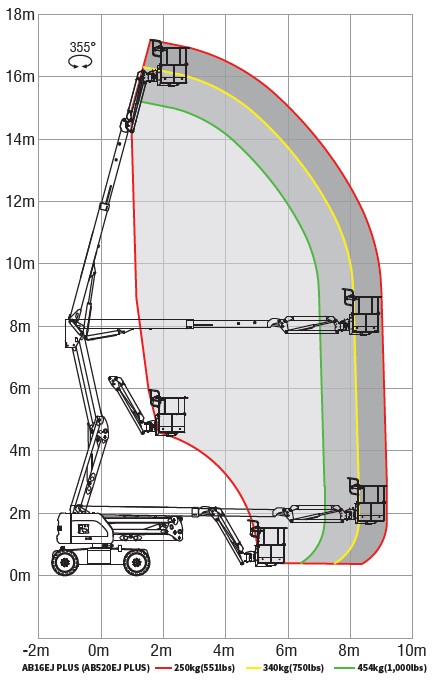

Max Platform Height
15.8m (51'10") -
Max Working Height
17.8m (58'5") -
Max Horizontal Extension
9m / 8.1m / 7m -

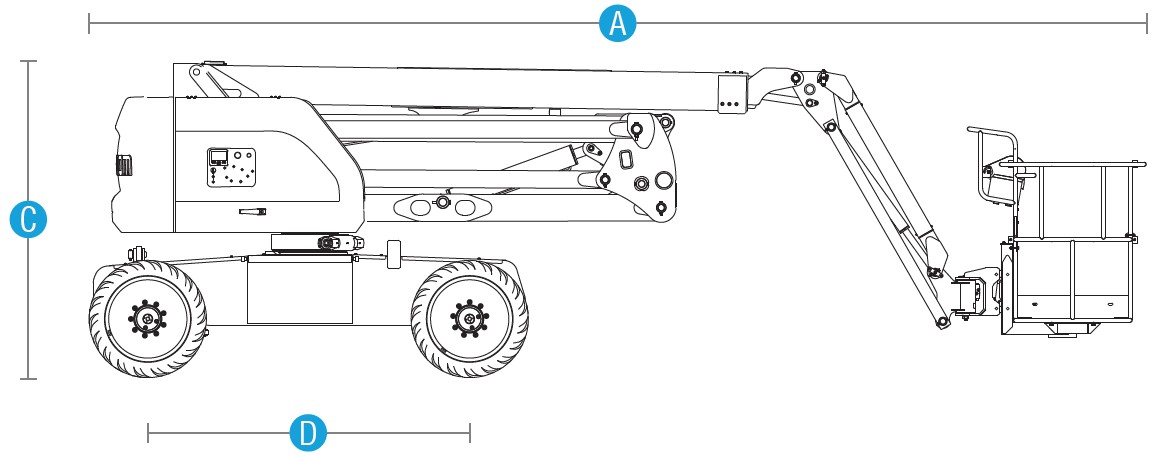

[A] Length-Stowed
7.6m -

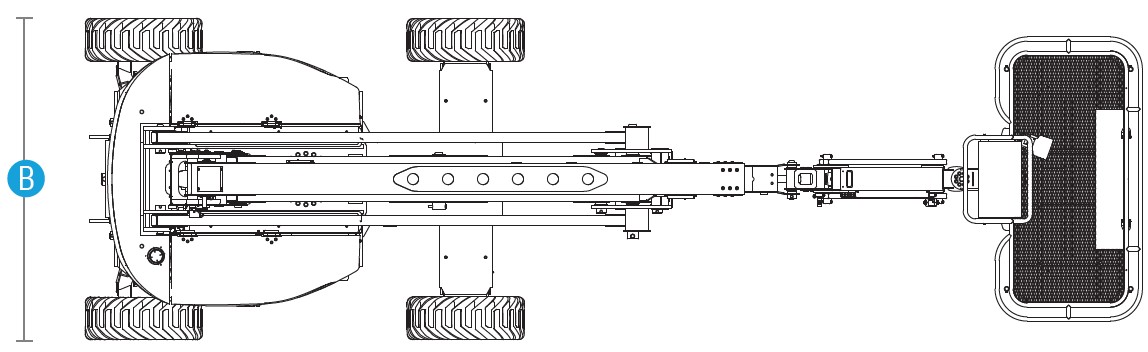

[B] Width-Stowed
2.3m -
[C] Height-Stowed
2.25m -
[D] Wheelbase
2.3m -
Ground Clearance
0.37m -
Platform Dimensions
(L×W×H)1.83 m × 0.85 m × 1.1 m
Performance
-
Platform Capacity
(Unrestricted/2 Persons)250kg / 340kg / 454kg (Unrestricted / Restricted / Restricted) -
Turntable Rotation
355° non-continuous -
Platform Rotation
180° -
Drive Speed-Stowed
5.5km/h -
Drive Speed-Raised
1.1km/h -
Gradeability
40％ -
Turning Radius-Inside
1.8 m -
Turning Radius-Outside
4.78 -
Turntable Tailswing
0.3m -
Tilt Rating
5° -
Drive×Steer
4WD × 2WS -
Tyres Spec/Type
33 × 12 D610 (non-marking)
Power
-
Batteries
48 V, 315 Ah (lithium battery)
48 V, 390 Ah (AGM battery) -
Auxiliary Power Unit
12V DC -
Hydraulic Tank Capacity
64L
-
Weight
7,750kg -
Standards Compliance
AS/NZS1418
Standard features
- Active oscillating function
- 5-in display screen
- 4WD × 2WS
- Proportional control
- Hydraulic platform leveling
- Max tilt rating to 5°
- Non-marking tires
- 1.83m(6') platform
- Secondary guarding system
- Half Mesh
- Telematics-ready connector
- White noise alarm
- Lockable battery isolator
- Lithium battery
Optional features
- AC power to platform
- Harness tube
- Wheel nut indicator
- Fire Extinguisher
- Full mine spec
- AGM battery
