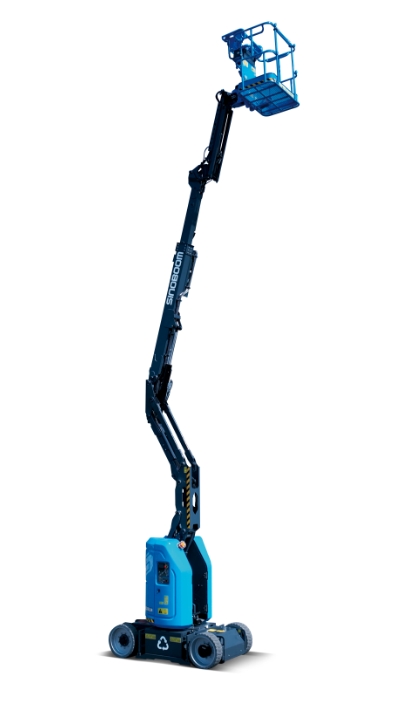

AB10ERJN
Electric Articulated Boom Lifts
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS
Dimensions
-
Max Platform Height
9.62m (31'7") -

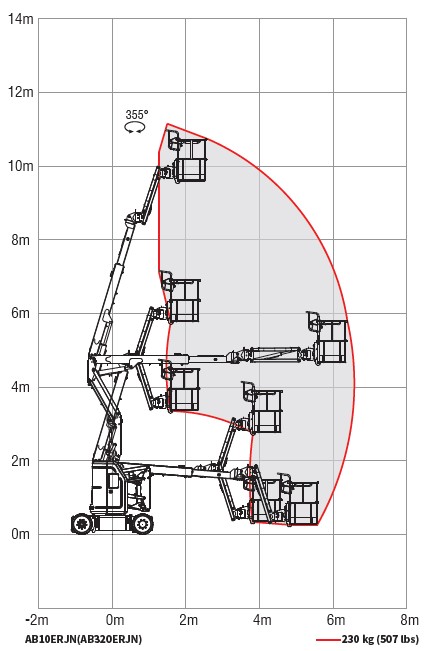

Max Working Height
11.62m (38'1") -
Max Horizontal Extension
6.3m -

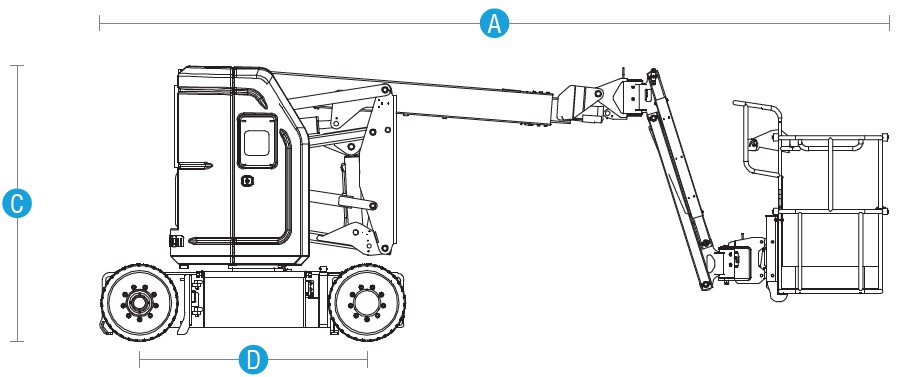

[A] Length-Stowed
5.72m -

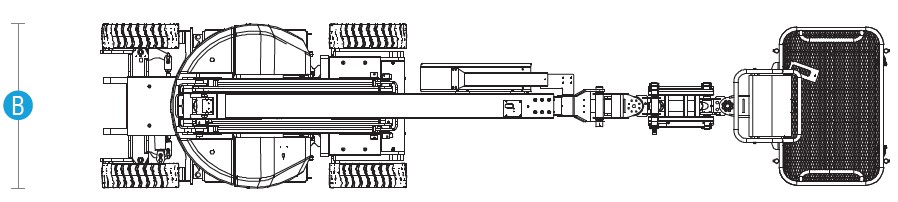

[B] Width-Stowed
1.19m -
[C] Height-Stowed
1.99m -
[D] Wheelbase
1.65m -
Ground Clearance
0.075m / 0.02m (pothole guard stowed / deployed) -
Platform Dimensions
(L×W×H)1.15m×0.76m×1.1m
Performance
-
Platform Capacity
(Unrestricted/2 Persons)230kg -
Turntable Rotation
355° non-continuous -
Platform Rotation
180° -
Drive Speed-Stowed
0~5 km/h -
Drive Speed-Raised
0~0.8 km/h -
Gradeability
35％ -
Turning Radius-Inside
1.7m -
Turning Radius-Outside
3.25m -
Turntable Tailswing
0m -
Tilt Rating
3° -
Drive×Steer
2WD × 2WS -
Tyres Spec/Type
22×7×17.75'' (Solid non-marking)
Power
-
Batteries
48 V, 330 Ah (AGM, lead acid battery) -
Auxiliary Power Unit
12V DC -
Hydraulic Tank Capacity
20L
-
Weight
6,760 kg -
Standards Compliance
AS/NZS1418
Standard features
- Hydraulic platform leveling
- 5-in display screen
- 2WD × 2WS
- Proportional control
- Automotive-grade sleeves for all pipes
- Emergency lowering system
- Manual storage box
- Max tilt rating to 3°
- Weighing system
- Tilt protection system
- Horn & buzzer
- Emergency stop system
- Flashing beacon
- Footswitch
- Fault diagnosis system
- Solid non-marking tires
Optional features
- AC power to platform
- Secondary guarding device
- Platform work light
- Overhead anti-collision device
- Telematics-ready connector
