HOME>PRODUCTS>Telescopic Boom Lift>TB42RJ

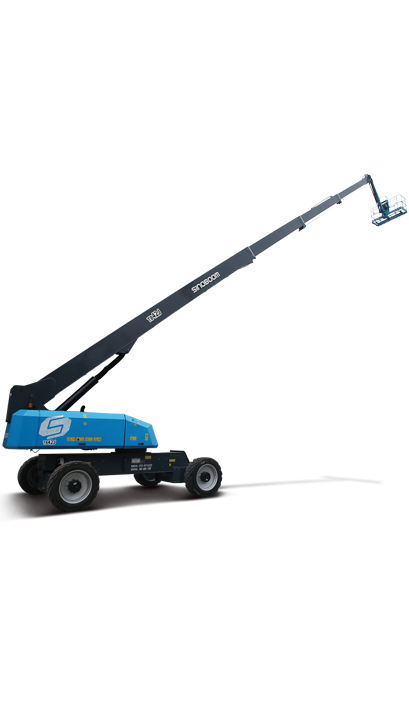

TB42RJ

Engine Powered Telescopic Boom Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS

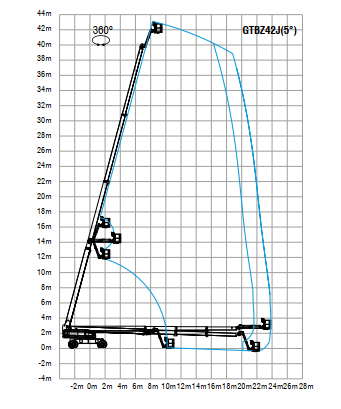

Dimensions

  • Max Platform Height

    41.6m (136'6")

  • Max Working Height

    43.6m (143'0.5")

  • Max Horizontal Extension

    23.2m

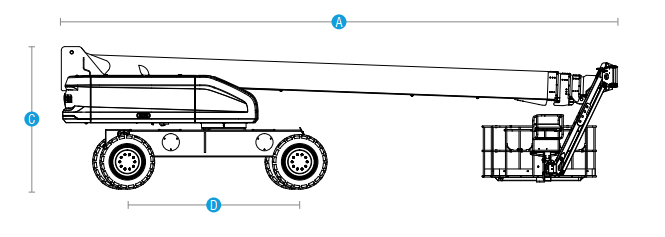

  • [A] Length-Stowed

    14.96m

  • [B] Width

    2.49m

  • [C] Height-Stowed

    3.15m

  • [D] Wheelbase

    3.81m

  • Ground Clearance

    0.65m

  • Platform Dimensions(L×W×H)

    2.44×0.91×1.1m
Performance

  • Platform Capacity
    (Unrestricted)

    250kg

  • Platform Capacity
    (restricted)

    480kg

  • Turntable Rotation

    360° continuous

  • Platform Rotation

    180°

  • Drive Speed-Stowed

    4.4km/h

  • Drive Speed-Raised

    1.1km/h

  • Gradeability

    40%

  • Turning Radius-Inside

    4.37m

  • Turning Radius-Outside

    6.81m

  • Turntable Tailswing

    1.68m

  • Tilt Rating

    5°

  • Max Operating Noise Level

  • Drive×Steer

    4WD×4WS

  • Tyres-solid

    445/50D710
Power

  • Power Source (Optional)

    54 KW /2400 rpm/ QSF2.8t3TC72/Cummins or
    55.4 KW /2600 rpm/ TD2.9 L4/Deutz/EU Stage ⅢB/EPA 4

  • Auxiliary Power Unit

    12V DC

  • Fuel Tank Capacity-Diesel

    200L

  • Hydraulic Tank Capacity

    280L


  • Weight

    22,400 kg

  • Standards Compliance

    AS/NZS1418
Download Brochures
Standard features
  • Active oscillating function
  • 7-in display screen
  • 4WD × 2WS
  • Proportional control with 3 joysticks
  • Hydraulic platform leveling
  • Max tilt rating to 5°
  • 2.44 m (8') platform with swing gate
  • Non-marking tires
  • Secondary guarding system
  • Half Mesh
  • Telematics-ready connector
  • White noise alarm
  • Lockable battery isolator
Optional features
  • AC power to platform
  • Generator
