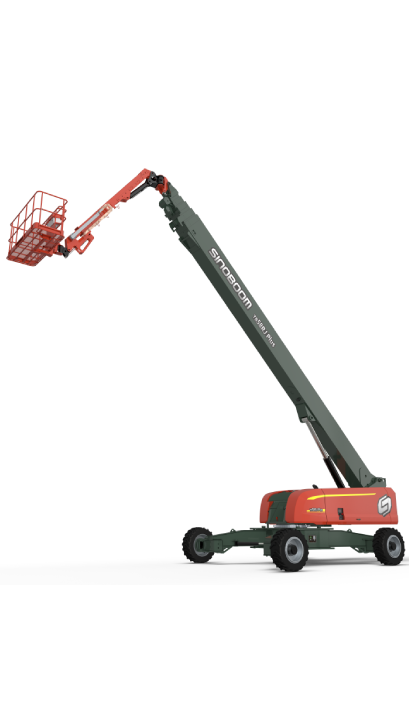

TB58RJ Plus
Engine Powered Telescopic Boom Lifts
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS
Dimensions
-
Max Platform Height
57.9m (190') -

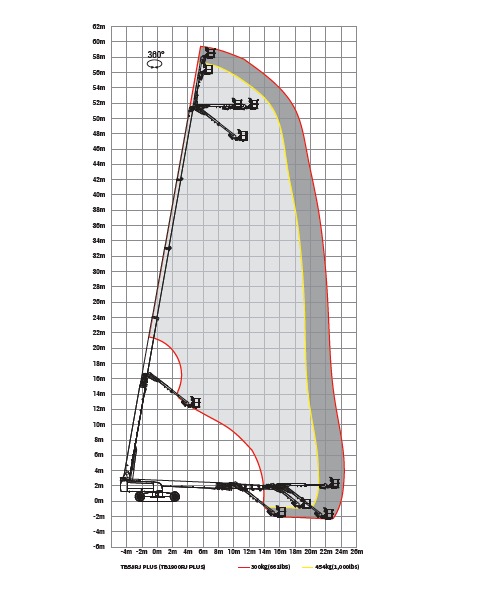

Max Working Height
59.9m (196'6") -
Max Horizontal Extension
20.01m / 24.4m -

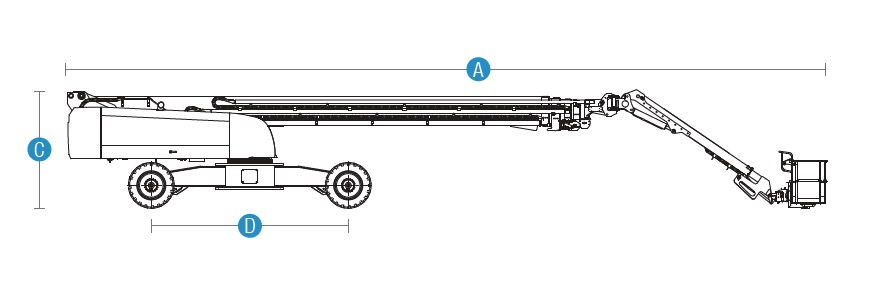

[A] Length-Stowed
20.07m -

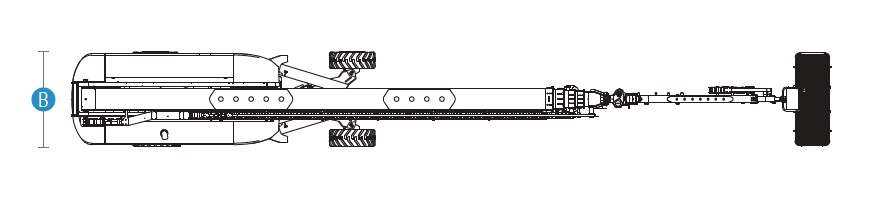

[B] Width
2.49m -
[C] Height-Stowed
3.1m -
[D] Wheelbase
5.2m -
Ground Clearance
0.33m -
Platform Dimensions(L×W×H)
2.44×0.91×1.1m
Performance
-
Platform Capacity
(Unrestricted)300kg -
Platform Capacity
(restricted)454kg -
Turntable Rotation
360° continuous -
Platform Rotation
160° -
Drive Speed-Stowed
4.5km/h -
Drive Speed-Raised
0.48km/h -
Gradeability
45% -
Turning Radius-Inside
7.1m -
Turning Radius-Outside
9.52m -
Turntable Tailswing
3.58m -
Tilt Rating
5° -
Max Operating Noise Level
-
Drive×Steer
4WD×4WS -
Tyres-solid
445/50D710 24PR
Power
-
Power Source (Optional)
74 kw/2200 rpm/ YCF36100-T480/Yuchai/China Stage 4 -
Auxiliary Power Unit
12V DC -
Fuel Tank Capacity-Diesel
200L -
Hydraulic Tank Capacity
405L
-
Weight
27,600kg -
Standards Compliance
AS/NZS1418
Standard features
- Proportional control with 3 joysticks
- 7-in display screen
- 4WD x 4WS
- Electrical platform levelling
- 2.44m(8') work platform
- Foam-filled tires
- Max tilt rating to 5°
- 2.44 m (8') platform with swing gate
- Non-marking tires
- Secondary guarding system
- Half Mesh
- Telematics-ready connector
- White noise alarm
- Lockable battery isolator
Optional features
- AC power to platform
- Generator
