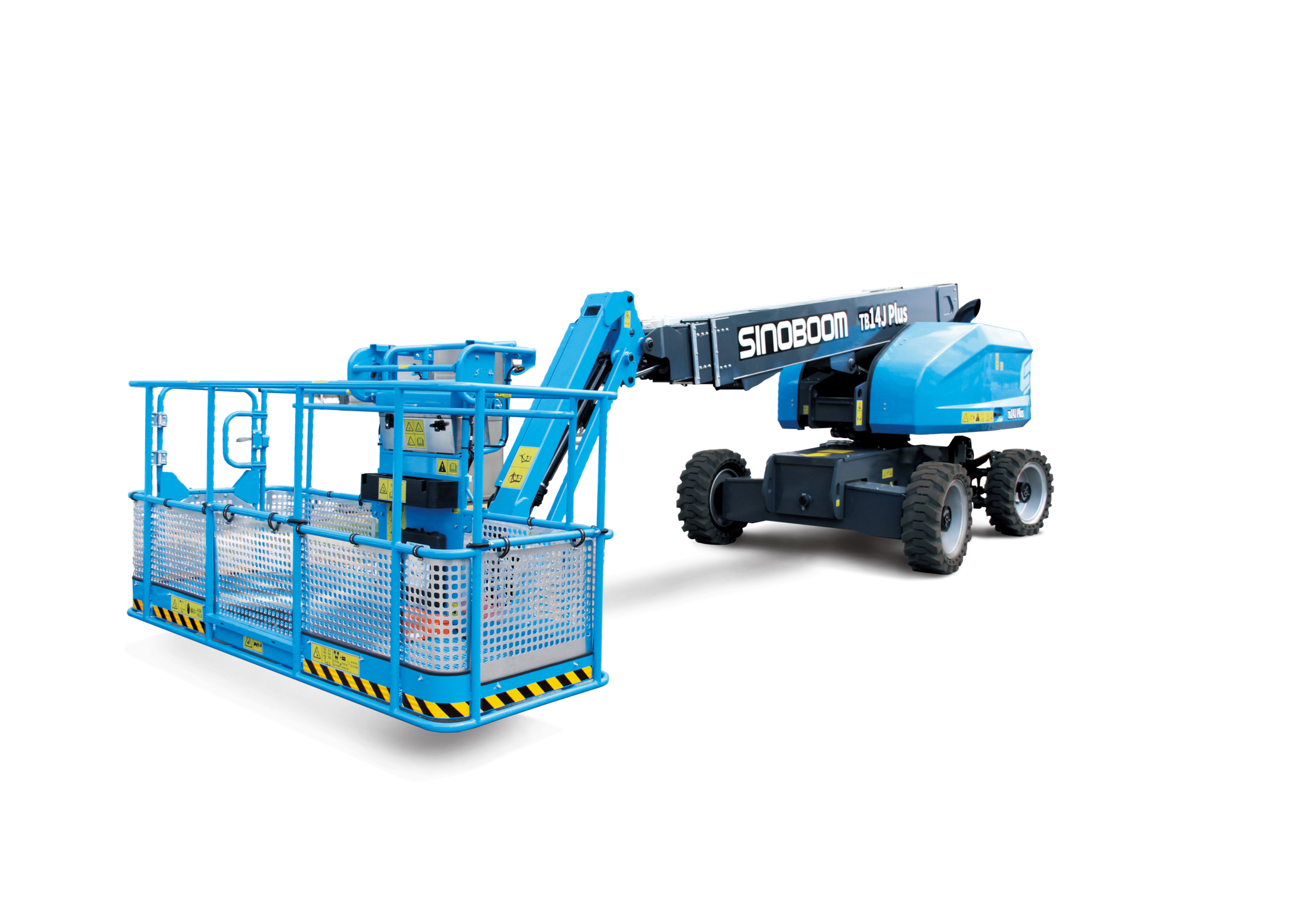

TB14J Plus
Engine Powered Telescopic Boom Lifts
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS
Dimensions
-
Max Platform Height
14.1m (46'3") -
Max Working Height
16.1 m (52'10") -

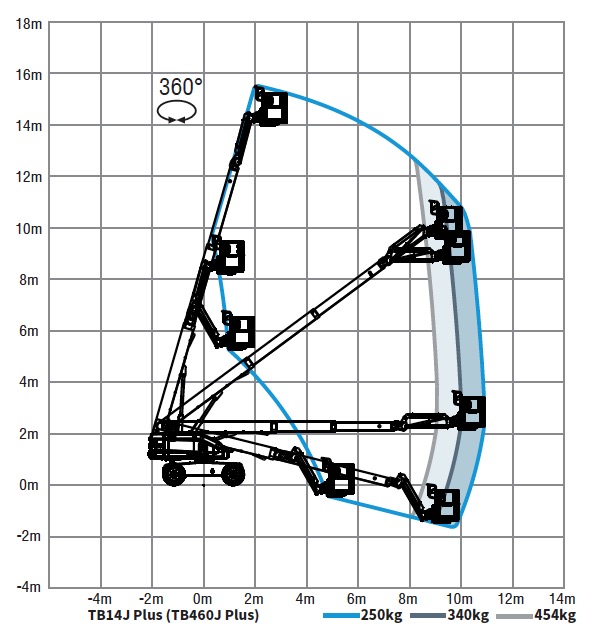

Max Horizontal Extension
10.9 m / 10 m / 9.6 m -

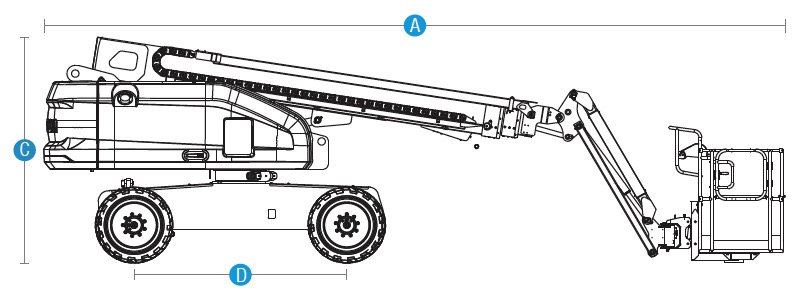

[A] Length-Stowed
7.99 m -

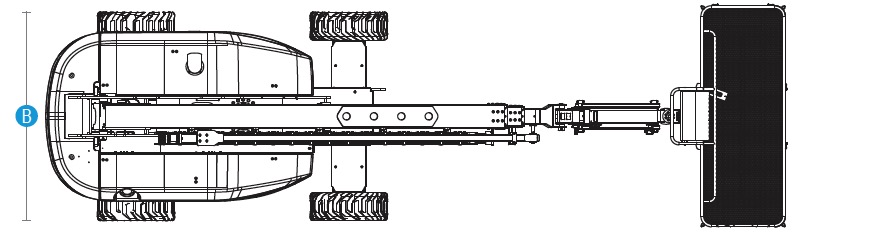

[B] Width
2.3 m -
[C] Height-Stowed
2.49 m -
[D] Wheelbase
2.3 m -
Ground Clearance
0.37 m -
Platform Dimensions(L×W×H)
2.44×0.91×1.1m
Performance
-
Platform Capacity
(Unrestricted)250kg -
Platform Capacity
(restricted)454kg / 340kg -
Turntable Rotation
360° continuous -
Platform Rotation
160° -
Drive Speed-Stowed
4.8km/h (3mph) -
Drive Speed-Raised
1.1km/h (0.68mph) -
Gradeability
40% -
Turning Radius-Inside
1.82 m -
Turning Radius-Outside
4.78 m -
Turntable Tailswing
0.98 m -
Tilt Rating
5° -
Max Operating Noise Level
-
Drive×Steer
4WD×2WS -
Tyres-solid
33×12D610 (non-marking)
Power
-
Power Source (Optional)
18.4 kW/3000 rpm/ 3TNV80F-NXDSI /Yanmar / EU stage V / EPA Tier 4F -
Auxiliary Power Unit
12V DC -
Fuel Tank Capacity-Diesel
100L -
Hydraulic Tank Capacity
120L
-
Weight
7,300 kg -
Standards Compliance
AS/NZS1418
Standard features
- Active oscillating function
- 7-in display screen
- 4WD × 2WS
- Proportional control with 3 joysticks
- Hydraulic platform leveling
- Max tilt rating to 5°
- 2.44 m(8') platform with swing gate
- Non-marking tires
- Secondary guarding system
- Half Mesh
- Telematics-ready connector
- White noise alarm
- Lockable battery isolator
Optional features
- AC power to platform
- Belt-driven generator
