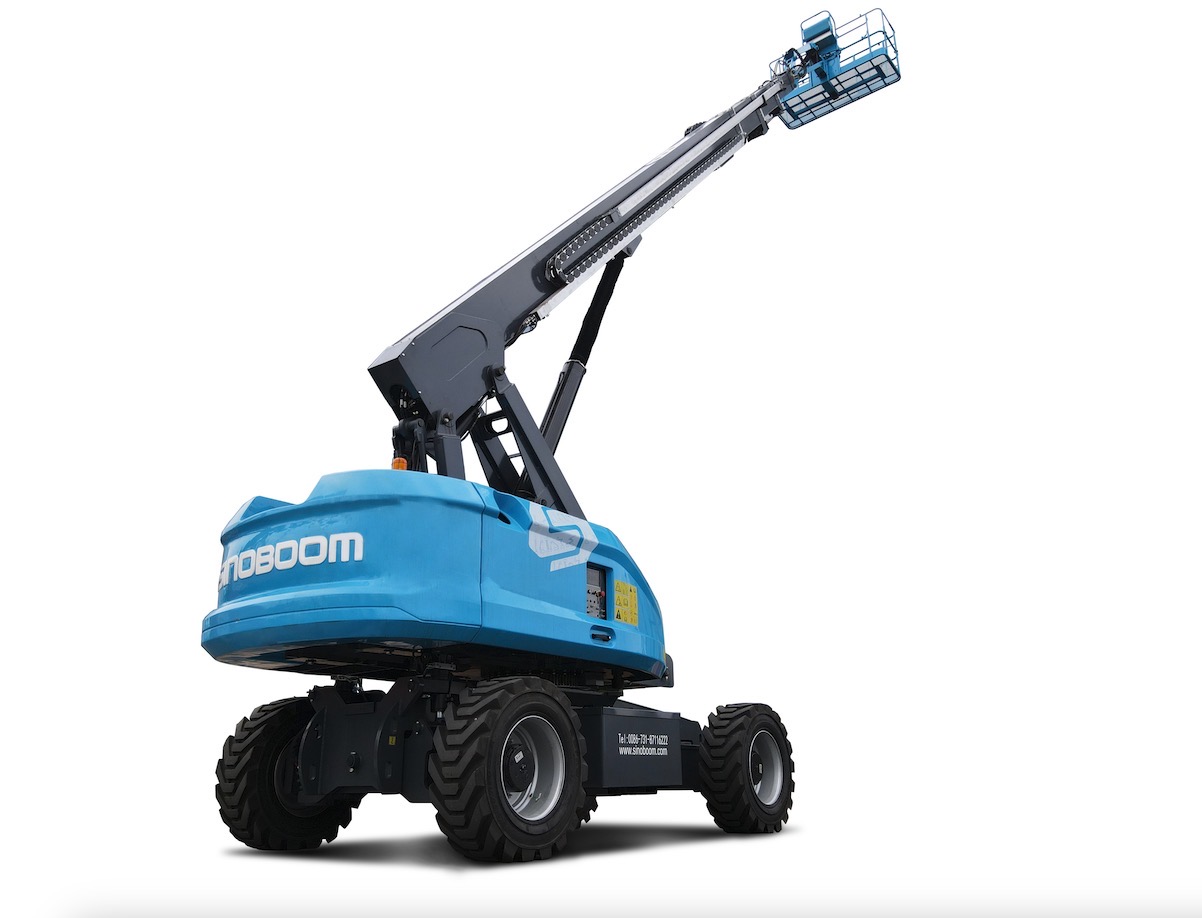

TB26J Plus
Engine Powered Telescopic Boom Lifts
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS

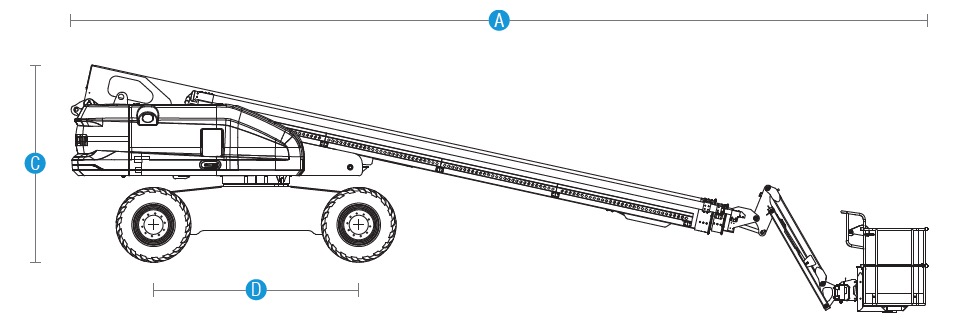

Dimensions
-
Max Platform Height
26.3m (86'3") -
Max Working Height
28.3m (92'10") -

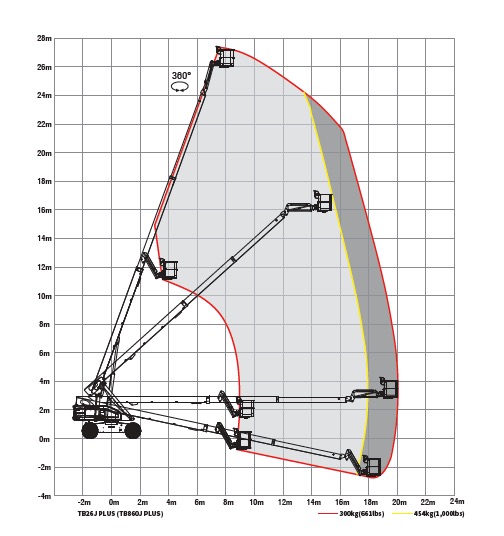

Max Horizontal Extension
17.9m / 20m -
[A] Length-Stowed
12.5m -
[B] Width
2.49m -
[C] Height-Stowed
2.88 m -
[D] Wheelbase
3m -
Ground Clearance
0.46m -
Platform Dimensions(L×W×H)
2.44×0.91×1.1m
Performance
-
Platform Capacity
(Unrestricted)300kg -
Platform Capacity
(restricted)454kg -
Turntable Rotation
360° continuous -
Platform Rotation
160° -
Drive Speed-Stowed
4.8km/h -
Drive Speed-Raised
1.1km/h -
Gradeability
45% -
Turning Radius-Inside
3.65m -
Turning Radius-Outside
6.91m -
Turntable Tailswing
1.45m -
Tilt Rating
5° -
Max Operating Noise Level
-
Drive×Steer
4WD×2WS -
Tyres-solid
385/65D22.5 (non-marking)
Power
-
Power Source (Optional)
54 KW /2400 rpm/ QSF2.8t3TC72/Cummins -
Auxiliary Power Unit
12V DC -
Fuel Tank Capacity-Diesel
140L -
Hydraulic Tank Capacity
180L
-
Weight
17,000kg -
Standards Compliance
AS/NZS1418
Standard features
- Active oscillating function
- 7-in display screen
- 4WD × 2WS
- Proportional control with 3 joysticks
- Hydraulic platform leveling
- Max tilt rating to 5°
- 2.44 m (8') platform with swing gate
- White noise alarm
- Lockable battery isolator
- Non-marking tires
- Secondary guarding system
- Half Mesh
- Telematics-ready connector
Optional features
- AC power to platform
- Generator
Related Products
-

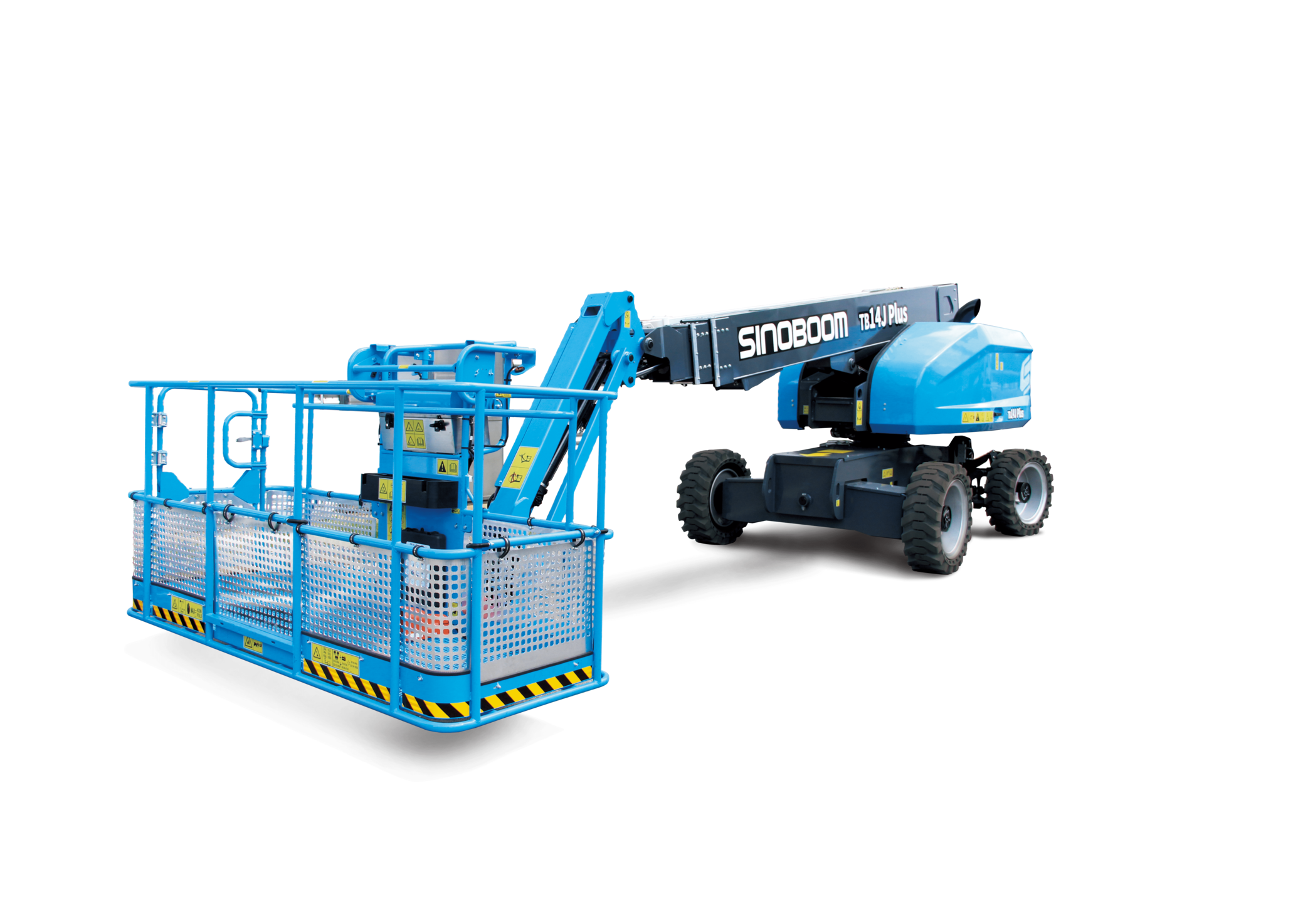

TB14J PlusEngine Powered Telescopic Boom Lifts -
