HOME>PRODUCTS>Telescopic Boom Lift>TB20J Plus

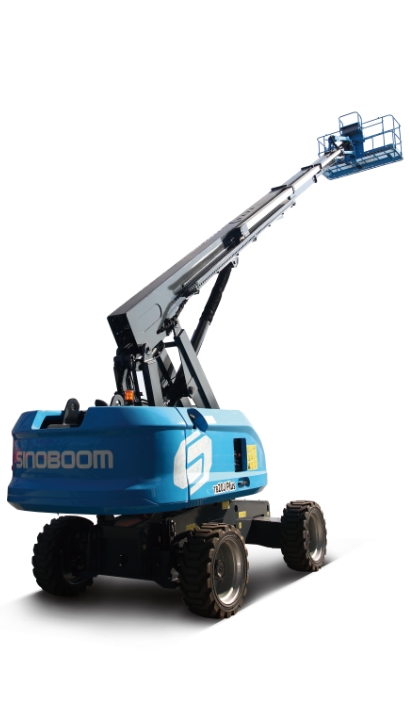

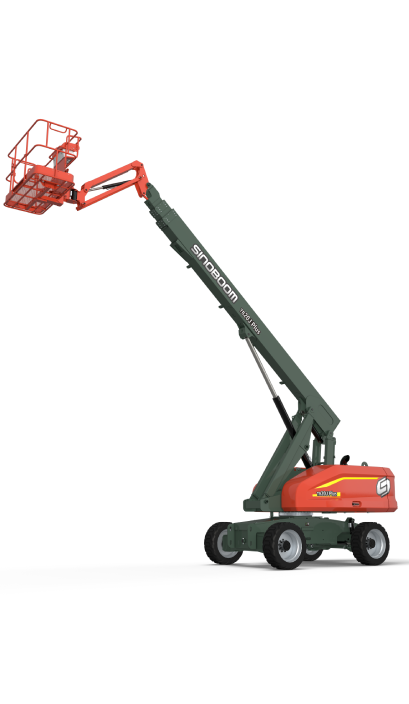

TB20J Plus

Engine Powered Telescopic Boom Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

  • Max Platform Height

    20 m (65'7")

  • Max Working Height

    22m (72'2")

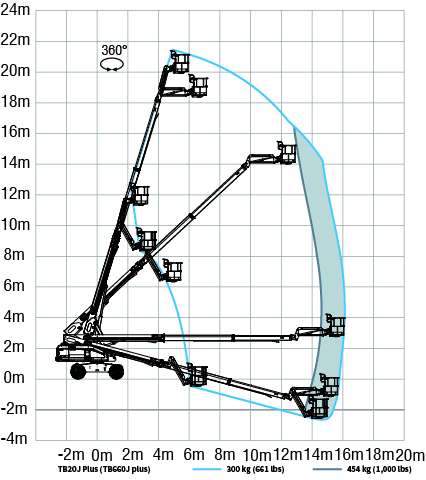

  • Max Horizontal Extension

    14.6m / 16.1m

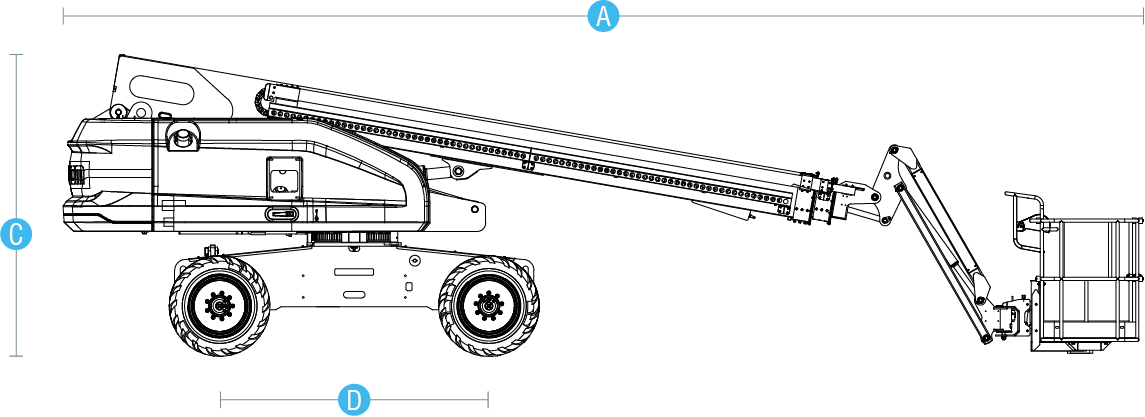

  • [A] Length-Stowed

    9.99m

  • [B] Width

    2.49m

  • [C] Height-Stowed

    2.79m

  • [D] Wheelbase

    2.49m

  • Ground Clearance

    0.46m

  • Platform Dimensions(L×W×H)

    2.44×0.91×1.1m
Performance

  • Platform Capacity
    (Unrestricted)

    300kg

  • Platform Capacity
    (restricted)

    454kg

  • Turntable Rotation

    360° continuous

  • Platform Rotation

    160°

  • Drive Speed-Stowed

    4.8km/h

  • Drive Speed-Raised

    1.1km/h

  • Gradeability

    45%

  • Turning Radius-Inside

    2.4m

  • Turning Radius-Outside

    5.6m

  • Turntable Tailswing

    1.45m

  • Tilt Rating

    5°

  • Max Operating Noise Level

  • Drive×Steer

    4WD×2WS

  • Tyres-solid

    355/65D625 (non-marking)
Power

  • Power Source (Optional)

    43 kW/2500 rpm/ QSF2.8t3NA60/ Cummins

  • Auxiliary Power Unit

    12V DC

  • Fuel Tank Capacity-Diesel

    140L

  • Hydraulic Tank Capacity

    180L


  • Weight

    11,900 kg

  • Standards Compliance

    AS/NZS1418
Download Brochures
Standard features
  • Active oscillating function
  • 7-in display screen
  • 4WD × 2WS
  • Proportional control with 3 joysticks
  • Hydraulic platform leveling
  • Max tilt rating to 5°
  • 2.44 m (8') platform with swing gate
  • White noise alarm
  • Lockable battery isolator
  • Non-marking tires
  • Secondary guarding system
  • Half Mesh
  • Telematics-ready connector
Optional features
  • AC power to platform
  • Generator
